NEW STRUCTURAL STEEL

STRUCTURAL STEEL PRODUCTS

No matter what kind of project you’re planning, Pipe and Metal Center of Texas can supply you with the quality structural steel you need. We carry a wide variety of structural steel products to build with. From angle iron and square tubing to channels and beams, we have what you need and offer cutting to help with your project.

STRUCTURAL STEEL PRODUCTS

  • Angles
  • Square tubing
  • Beams
  • Bar Grating
  • Round And Square Bars
  • Expanded Metal
  • Channels
  • C-Purlin And Receiver Channel
  • Schedule 10/40/80 Pipe And More
  • Surplus Steel Materials As Available
  • Aluminum Galvanized and Stainless Materials Available upon request

PRODUCT SPECIFICATIONS

ANGLE IRON

Specifications

½” x ½” up to 6” x 6”  Some Available in 10’ and 40’ All available in 20’ sections.

Available thicknesses are

  • 1/8” (.125”)
  • 3/16” (.188”)
  • ¼” (.250”)
  • 3/8” (.375”)
  • ½” (.500”)

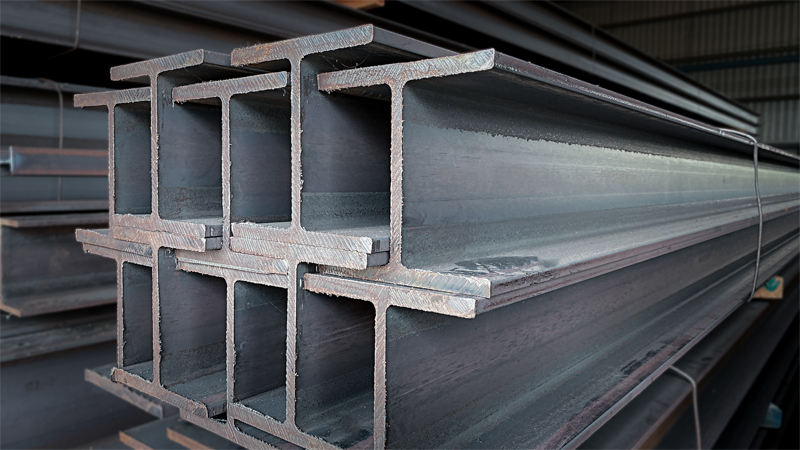

beams

Specifications

  • Standard Beams 3” to 24”
  • Junior Beams 5” to 12”
  • Wide Flange Beams 4” to 44”
  • Available min 20’ sections up to 60’

Channel Iron

Specifications

  • ¾” up to 18”
  • Some Available in 10’ and 40’ and All available in 20’ Sections

Solid Round Bar

Specifications

  • Hot rolled and Cold finished
  • 1/8” up to 2”
  • Some Available in 10’ and All Available in 20’ Sections

Solid Square Bars

Specifications

  • ¼” to 6”
  • Some Available in 10’ and All available in 20’ Sections

Rebar

Specifications

  • ¼” to 2 ¼”
  • Available in 20’ Sections

Flat Bar

Specifications

  • 1/8” to 12”
  • Some Available in 10’ or All available in 20’ Sections

Available Thicknesses Are

  • 1/8” (.125”)

  • 3/16” (.188”)

  • ¼” (.250”)

  • 3/8” (.375”)

  • ½” (.500”)

  • ¾”(.750”)

  • 1”

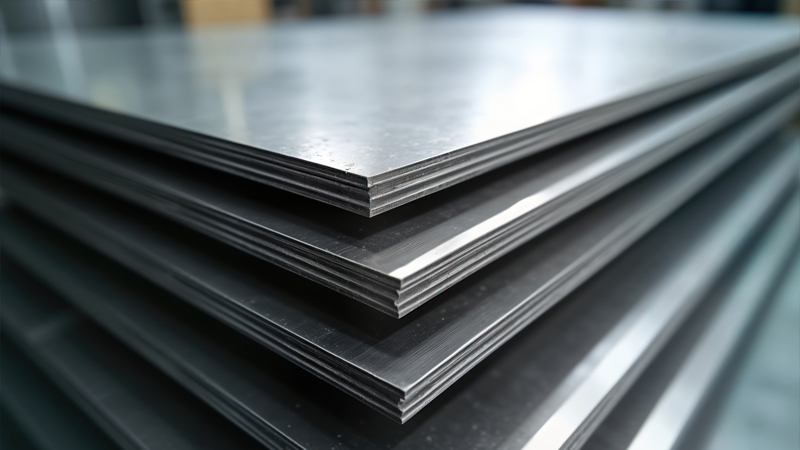

Plate & Sheet Steel

Specifications

Available in Cold Rolled and Hot Rolled.

Available thicknesses Are

  • 22G (.0299”)
  • 20G (.0359”)
  • 18G (.0478”)
  • 16G (.0598”)
  • 14 G (.0747”)
  • 1/8” (.125”)
  • 3/16” (.188”)
  • ¼” (.250”)
  • 3/8” (.375”),
  • ½” (.500”)
  • ¾”(.750”), 1”

Common Sizes are

  • 48”x 96″
  • 48” x 120”
  • 60”x96”
  • 60”x120”
  • Talk to a sales representative about custom cut sizes.

Floor Plate (Diamond Plate)

Specifications

Available in 48” x 96”

Available thicknesses Are

  • 14G (.0747”)
  • 12G(.0365”)
  • 1/8” (.125”)
  • 3/16” (.188”)
  • ¼” (.250”)
  • 3/8” (.375”)
  • ½” (.500”
  • ¾”(.750”)

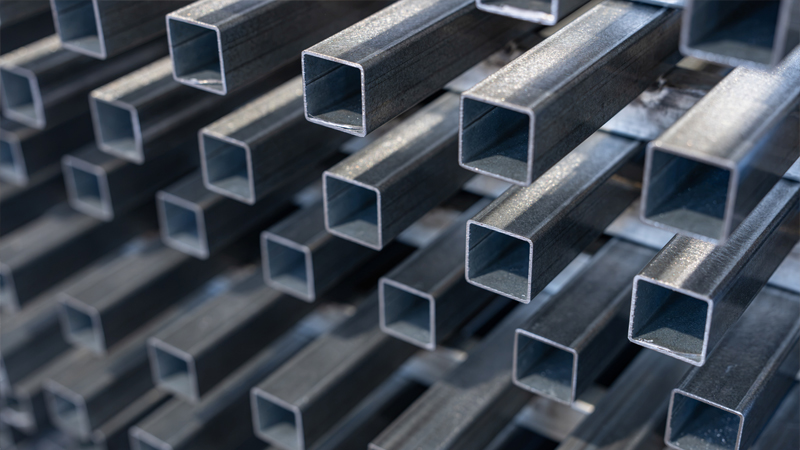

Square Tube

Specifications

½” x ½” up to 16” x 16”

Available thicknesses Are

  • 14 G (.0747”)
  • 1/8” (.125”)
  • 3/16” (.188”)
  • ¼” (.250”)
  • 3/8” (.375”)
  • ½” (.500”)
  • Available in 12’, All available in 20’, 24’ and 40’ Sections

Rectangular Tubing

All available in 20’, 24’ and 40’ sectionsSpecifications

1 ½” x 1” up to 20”x 12”

Available thicknesses are

  • 4 G (.0747”)
  • 1/8” (.125”)
  • 3/16” (.188”)
  • ¼” (.250”)
  • 3/8” (.375”)
  • ½” (.500”)
  • All available in 20’, 24’ and 40’ sections

Expanded Metal

Specifications

  • ½” #12 Flat and Standard 48” x 96”
  • ¾ #9 Flat and Standard 48”x 96”
  • 60’ x 120”, 3 lb Standard 48” x 96”

New Pipe

Specifications

  • ½” to 36” Schedule 40 and 80 in 21’ and 42’ sections.

Aluminum, Stainless, Galvanized material

Specifications

  • Available in shapes and plates to order

Special Orders

Specifications

  • We offer special orders and hard to find items as needed

Red Primed C-Purlin in 20’,25’, and 30’

Specifications

  • 3″ X 1.50″ X .075 NOM.

  • 4″ X 2″ X 14G

  • 6″ X 2″ X 14G

  • 8″ X 2-1/2″ X 14G

  • 4″ X 2″ X 14G

  • 2″ X 2″ X 14G. X 20′
